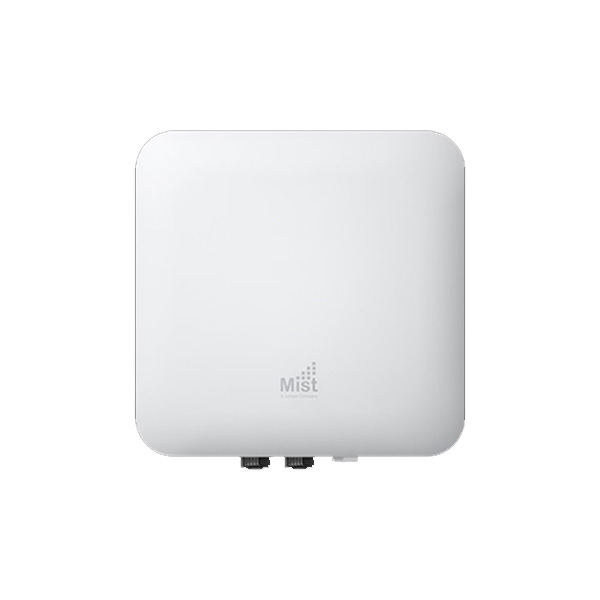

Juniper MIST AP63 Access Point

  • Deployment     Outdoor
  • Wi-Fi Standard      802.11ax (Wi-Fi 6); 4×4: 4
  • Wi-Fi Tri-Radio      Yes
  • Antenna Options      Internal, External
  • Virtual Bluetooth LE      Yes

TBA

SKU: AP63 Categories: , ,
Juniper
Specification
Gigabit Wi-Fi 802.11ax (Wi-Fi 6), including support for OFDMA,
1024-QAM, MU-MIMO, Target Wake Time (TWT),
Spatial Frequency Reuse (BSS Coloring).
Backwards compatibility with 802.11a/b/g/n/ac
Combined Highest
Supported Data Rates		 Dual-Band: 3.5 Gbps
Dual-5GHz (internal antenna model): 4.8 Gbps
2.4 GHz 4×4 : 4 802.11ax up to 1,148 Mbps data rate
5 GHz 4×4 : 4 802.11ax up to 2,400 Mbps data rate
MIMO Four spatial stream SU-MIMO for up to 2,400 Mbps
wireless data rate to individual 4×4 HE80
Four spatial stream MU-MIMO for up to 2,400
Mbps wireless data rate to up to four MU-MIMO
capable client devices simultaneously
Dedicated Third Radio 2/2 : 2SS, dual-band WIDS/WIPS, spectrum
analysis, synthetic client and location analytics radio
Antenna Options Four 2.4GHz omnidirectional antennas with 4 dBi
peak gain
Four 5GHz omnidirectional antennas with 6 dBi
peak gain
Bluetooth 5.0 vBLE 16-element Directional Antenna Array + Omni
Bluetooth Antenna
Beam Forming Transmit Beamforming and Maximal Ratio
Combining
Power Options 802.3at PoE (no PoE out), 802.3bt PoE
Dimensions 285 x 285 x 86 mm (11.2 x 11.2 x 3.4 in)
Weight AP63: 3.4kg (7.5 lbs) excluding mount and
accessories
AP63E: 3.9kg (8.6 lbs) excluding mount and
accessories
Operating Temperature -40° to 55° C with solar loading
-40° to 65° C without solar loading
Operating Humidity 10% to 90% maximum relative humidity, noncondensing
Operating Altitude 3,048 m (10,000 ft)
Enclosure IP67 / NEMA 4 compliant
Electromagnetic
Emissions		 FCC Part 15 Class B
Mean Time Between
Failures (MTBF)		 Indoor MTBF in hours is 999,958*
Outdoor MTBF in hours is 265,318*
Trusted Platform Module
(TPM)		 Includes a TPM for infrastructure security
I/O PORTS & ACCESSORIES
Reset Reset to the factory default settings
Eth1 10/100/1000Base-T; RJ45 optional 802.3af PoE PSE
mode (requires 802.3bt on Eth0
External Antennas
(AP63E)		 Six N-type male connectors (four dual- band for client
radios; two dual-band for the third radio)
Eth0 100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD
(requires 802.3bt)
Compliance
Standards		 CSA/UL 62368-1
FCC Part 15.247, 15.407,
15.107, and 15.109 RSS247 ICES003 (Canada)
ORDERING INFORMATION
US/FCC Domain AP63-US (Internal Antenna)
AP63E-US (External Antenna)
Rest of the World AP63-WW (Internal Antenna)
AP63E-WW (External Antenna)

The Wi-Fi 6 (802.11ax) AP63 access point offers high-performance Wi-Fi to ensure enterprise business continuity and operation efficiency in outdoor environments. The ruggedized and weather-resistant access points can be deployed in extremely harsh environments to meet service-level expectations (SLEs) and deliver unprecedented user experiences.

The AP63 integrates the Juniper patented Mist AI for AX capabilities and dynamic virtual Bluetooth® LE (vBLE) antenna array to automate network operation and boost Wi-Fi performance.  The AP63’s integrated technologies also provide real-time network insights and location services, including Juniper User Engagement, Asset Location, and Contact Tracing. These location services operate without the need for battery-powered BLE beacons and manual calibration.

Managed by the Juniper Mist cloud architecture, the outdoor AP63 is ideal for retail curbside, enterprise campus, public venue, outdoor station, and industrial site environments.

Learn more about the Juniper Mist cloud services that run on the AP63: Wi-FI Assurance, Wired Assurance, Premium Analytics, Marvis Virtual Network Assistant, User Engagement, and Asset Visibility.

What is the price of Juniper MIST AP63 Access Point in Bangladesh?
The latest price of Juniper MIST AP63 Access Point in Bangladesh is

TBA

.
