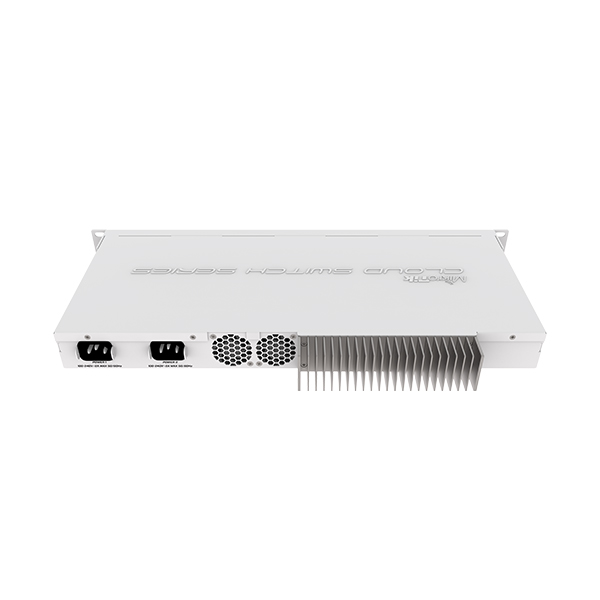

MIKROTIK CRS317-1G-16S+RM CLOUD ROUTER SWITCH WITH ROUTEROS L6 1U RACKMOUNT-US
Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies
TBA
| Specification | |
|---|---|
| Product code | CRS317-1G-16S+RM |
| Architecture | ARM 32bit |
| CPU | 98DX8216 |
| CPU core count | 2 |
| CPU nominal frequency | 800 MHz |
| Switch chip model | 98DX8216 |
| Dimensions | 443 x 224 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS / SwitchOS |
| Size of RAM | 1 GB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200’000 hours at 25C |
| Tested ambient temperature | -20°C to 60°C |
| Powering | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 44 W |
| Cooling type | 2 fans |
| Fiber | |
|---|---|
| SFP+ ports | 16 |
| Ethernet | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| Peripherals | |
|---|---|
| Serial console port | RJ45 |
| Certification & Approvals | |
|---|---|
| Certification | CE, EAC, ROHS |
| Other | |
|---|---|
| CPU temperature monitor | Yes |
The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features, it has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.
The unit has dual redundant power supplies and passive cooling case – for hot environments two redundant fans will automatically keep the system cool if needed.
