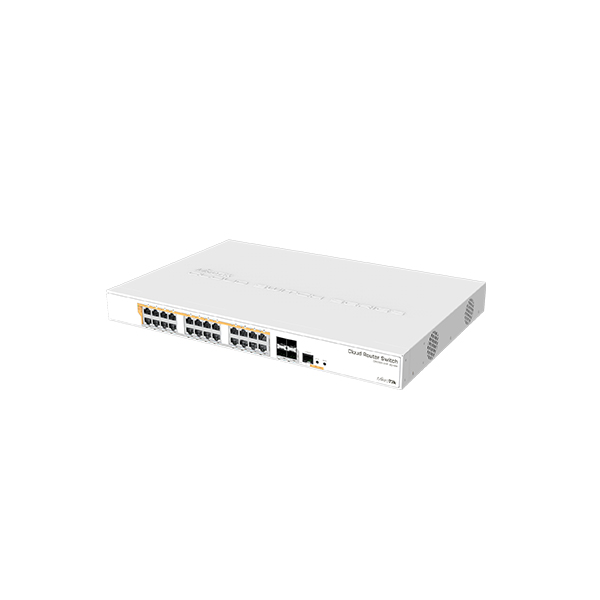

MIKROTIK CRS328-24P-4S+RM WITH ROUTEROS L5 1U RACKMOUNT ENCLOSURE-US

24 port Gigabit Ethernet router/switch with four 10Gbps SFP+ ports in 1U rackmount case, Dual Boot and PoE output, 500W

TBA

SKU: CRS328-24P-4S+RM Categories: , ,
Mikrotik
Specification
Product code CRS328-24P-4S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count 1
CPU nominal frequency 800 MHz
Dimensions 443 x 300 x 44 mm
RouterOS license 5
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200’000 hours at 25C
Tested ambient temperature -20°C to 60°C
Suggested price $489.00
Powering
Number of AC inputs 1
AC input range 100-240
Max power consumption 494 W
Max power consumption without attachments 44 W
Cooling type 2 fans
PoE-out
PoE-out ports Ether1-Ether24
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1000 mA
Max out per port output (input 30-57 V) 450 mA
Max total out (A) 20 A
Ethernet
10/100/1000 Ethernet ports 24
Fiber
SFP+ ports 4
Peripherals
Serial console port RJ45
Other
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
Certification & Approvals
Certification CE, EAC, ROHS
IP IP00

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3×150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems – RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

What is the price of MIKROTIK CRS328-24P-4S+RM WITH ROUTEROS L5 1U RACKMOUNT ENCLOSURE-US in Bangladesh?
The latest price of MIKROTIK CRS328-24P-4S+RM WITH ROUTEROS L5 1U RACKMOUNT ENCLOSURE-US in Bangladesh is

TBA

.
