Grandstream GWN7660ELR Outdoor Long-Range Dual-Band Wi-Fi 6 Access Point
- Up to 3000Mbps aggregate wireless throughput
- One 1000Mbps Gigabit Ethernet RJ45 port
- One 2500Mbps SFP port for fiber connectivity
- Dual-band 2×2:2 MU-MIMO technology
- Supports OFDMA for efficient wireless connectivity
- Supports up to 256 concurrent Wi-Fi clients
- Up to 300 metres of coverage
TBA
| WIRELESS | |
|---|---|
| Client Devices | Up to 256 |
| Range | 300 Meters |
| 2.4G Throughput | 573.5Mbps (2×2:2 MIMO) |
| 5G Throughput | 2.4Gbps (2×2:2 MIMO) |
| Wi-Fi Standards | IEEE 802.11 b/g/n/ac/ax |
| SSIDs | 32 SSIDs total, 16 per radio |
| Antennas | 5 individual internal antennas |
| INTERFACES | |

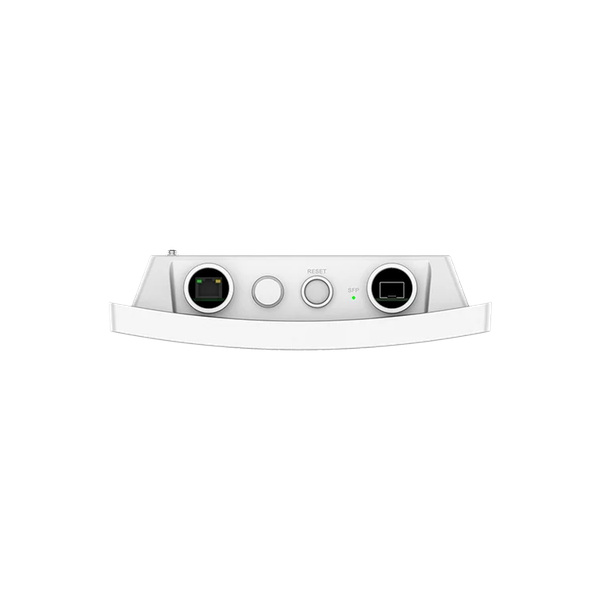

| Network Interfaces | 1x 1G RJ45 Port and 1x 2.5G SFP Port |
| PoE/PoE+ | Supports PoE 802.3af / 802.3at Maximum Power Consumption: 13W |
| SECURITY | |
| Wi-Fi and Security Systems | WPA/WPA2-PSK WPA/WPA2 Enterprise (TKIP/AES) WPA3 Anti-hacking secure boot and critical data/control lockdown via digital signatures Unique security certificate and random default password per device |
| PHYSICAL | |
| Dimensions | 270mm x 230mm x 57mm |
| Mounting | Wall mount or pole mount, kits included (The mounting kits can be adjusted and rotated by 60°) |
The Grandstream GWN7660ELR is an enterprise-grade outdoor long-range dual-band Wi-Fi 6 access point designed for businesses, warehouses, campuses, schools, hotels and other environments requiring reliable outdoor wireless connectivity. It delivers up to 3000Mbps aggregate wireless throughput, with up to 573.5Mbps on the 2.4GHz band and 2402Mbps on the 5GHz band. Featuring dual-band 2×2:2 MU-MIMO and OFDMA technology, it provides efficient wireless connectivity for up to 256 concurrent Wi-Fi clients across an approximate coverage range of 300 metres. The GWN7660ELR features one Gigabit Ethernet RJ45 port and one 2.5Gbps SFP port for flexible wired and fiber connectivity. Its IP68-rated weatherproof design supports demanding outdoor installations, while PoE/PoE+ power support simplifies deployment. Additional features include advanced QoS, mesh networking, WPA3 security and Bluetooth Low Energy (BLE) 5.2. Its embedded controller manages up to 50 local GWN access points, while GDMS Networking and GWN Manager provide flexible cloud-based and on-premises network management.
