GRANDSTREAM GWN7664 4×4 MU-MIMO OFDMA WI-FI 6 WIRELESS AP

  • 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
  • Dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology
  • Up to 175-meter coverage range
  • Supports 750+ concurrent Wi-Fi client devices
  • Includes 1x 1G Port and 1x 2.5G Port
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Self power adaptation upon auto detection of PoE or PoE+
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

TBA

SKU: GWN7664 Categories: , ,
Grandstream
Specification
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
Antennas 8 individual internal antennas, 4 per band
2.4GHz, gain 3dBi
5 GHz, gain 4dBi
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
s
5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps
IEEE 802.11ac: 6.5 Mbps to 1733 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz Radio: 2412 – 2484 MHz
5GHz Radio: 5180 – 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)
Wi-Fi and System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/
control lockdown via digital signatures, unique security certificate and random default password per device
MIMO 4×4:4 2.4GHz
4×4:4 5GHz
Coverage Range Up to 175 meters
*coverage range can vary based on environment
Maximum TX Power 5G: 25dBm
2.4G: 26dBm
*Maximum power varies by country, frequency band and MCS rate
Receiver Sensitivity 2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n 20MHz: -74dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 750+
Network Interfaces 1x 1G Port and 1x 2.5G Port, support 3.5Gbps aggregate wire throughput

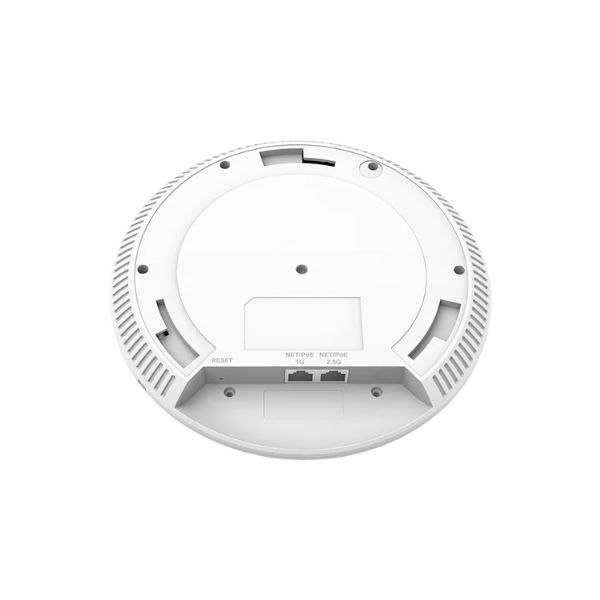

Auxiliary Ports 1x Reset Pinhole, 1x Kensington lock
Mounting Indoor wall mount or ceiling mount, kits included
LEDs 1 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3at;
Maximum Power Consumption: 17W
Environmental Operation: 0°Cto 50°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 205.3mm(L)x205.3mm(W)x405.9mm(H); Unit Weight: 0.714Kg
Entire Package Dimension: 258x247x86mm; Entire Package Weight: 1.06Kg
Package Content GWN7664 802.11ax Wireless AP, Mounting Kits, Quick Start Guide
Compliance FCC, CE, RCM, IC

The GWN7664 is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi cover age range. The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps. The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 750+ concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with medium-to-high user density.

What is the price of GRANDSTREAM GWN7664 4×4 MU-MIMO OFDMA WI-FI 6 WIRELESS AP in Bangladesh?
The latest price of GRANDSTREAM GWN7664 4×4 MU-MIMO OFDMA WI-FI 6 WIRELESS AP in Bangladesh is

TBA

.
