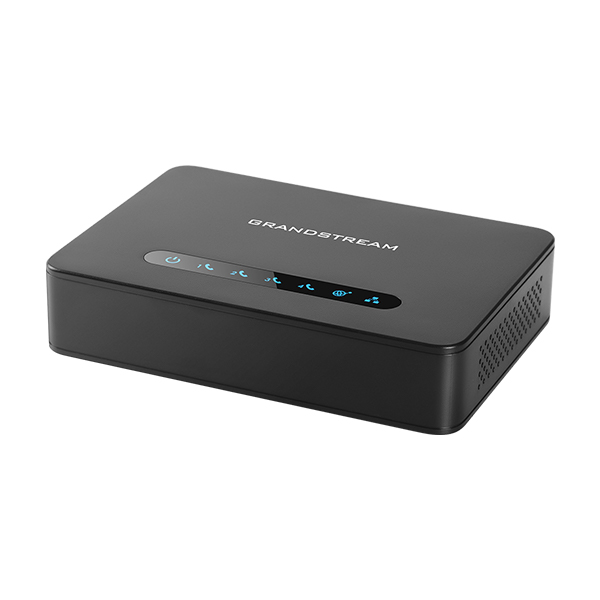

GRANDSTREAM HT814 IP ATA

  • Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning

TBA

Grandstream
Interfaces
Telephone Interfaces Four(4) RJ11 FXS ports; can be expanded by peering with an FXS gateway
Network Interfaces Two (2) 10/100/1000Mbps RJ45 ports
LED Indicators POWER, LAN, WAN, PHONE1, PHONE2, PHONE3, PHONE4
Factory Reset Button Yes
Voice, Fax, Modem
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward,
hold, do not disturb, 3-way conference
Voice Codecs G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.722, G.723.1, G.729A/B, G.726,
iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through
Short/Long Haul Ring Load 2 REN, up to 1km on 24AWG line.
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP,
TFTP, SSH, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069, IMS/3GPP
QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning and Control HTTP, HTTPS, SSH, TFTP, TR-069 , secure and automated provisioning using AES
encryption, syslog

Security

Media SRTP
Control TLS/SIPS/HTTPS, SDP(RFC 2327), Refer (RFC 3515), Offer/Answer (RFC3265)
SIP V2.0 (RFC 3261, 3262, 3264), RFC3261
ETC (3GPP TS 24.629, RFC 3515, RFC 3891, RFC 3892)
SIP Session Timer (RFC 4028
Management Syslog support, SSH, remote management using web browser

Physical

Universal Power Supply Input: 100-240VAC, 50-60Hz
Output: 12V/1.0A
Environmental Operational: 32º – 104ºF or 0º – 50ºC
Storage: 14º – 140ºF or -10º – 60ºC
Humidity: 10 – 90% Non-condensing
Dimension and Weight 28.5 x 130 x 90 mm (H x W x D)
Weight: 0.29 Kg
Compliance FCC/CE/RCM, K.21

The HT814 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable, robustnetwork. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT814 comes with 4 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

What is the price of GRANDSTREAM HT814 IP ATA in Bangladesh?
The latest price of GRANDSTREAM HT814 IP ATA in Bangladesh is

TBA

.
