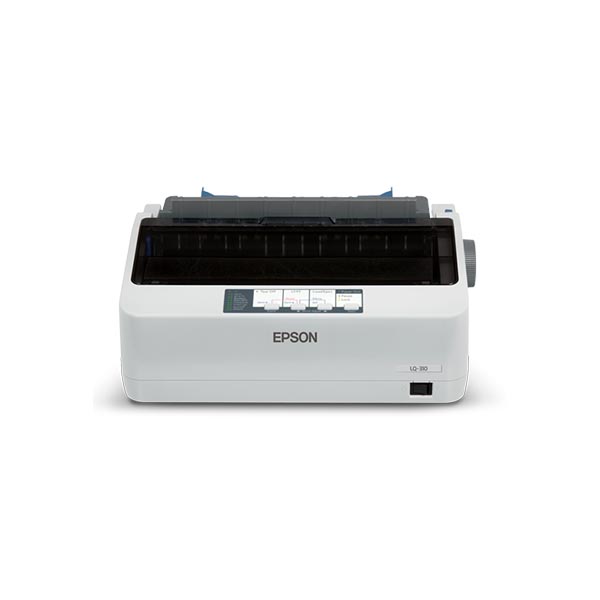

Epson LQ-310 Dot Matrix Printer
- Narrow carriage 24-pin SIDM
- High 416 CPS print speed at 12CPI
- 10,000 power on hour MTBF
- USB, Serial and Parallel ports
TBA
| Printing Technology | |
|---|---|
| Print Method | Impact dot matrix |
| Control Panel | 4 switches and 5 LEDs |
| Print Direction | Bi-direction with logic seeking |
| Number of Pins in Head | 24 pins |
| Control Code | ESC/P2 and IBM PPDS emulation |
| Print Characteristics | |
|---|---|
| Character Sets | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
| Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proportional |
| Scalable Fonts | Epson Roman, Epson San Serif, Epson Roman T & Epson San Serif H: 10.5pt., 8pt. – 32pt. (every 2pt.) |
| Barcode | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
| Paper Path | |
|---|---|
| Manual Insertion | Rear in, Top out |
| Push Tractor | Rear in, Top out |
| Paper Media | |
|---|---|
| Cut Sheet (Single Sheet) | Length: 100 ~ 364 mm (3.9 ~ 14.3″) Width: 100 ~ 257 mm (3.9 ~ 10.1″) Thickness: 0.065 ~ 0.14 mm (0.0025 ~ 0.0055″) |
| Cut Sheet (Multi-part Forms) | Length: 100 ~ 364 mm (3.9 ~ 14.3″) Width: 100 ~ 257 mm (3.9 ~ 10.1″) Thickness: 0.12 ~ 0.32 mm (0.0047 ~ 0.0126″) (Total) |
| Envelope (No.6) | Length: 92 mm (3.6″) Width: 165 mm (6.5″) Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total) |
| Envelope (No.10) | Length: 105 mm (4.1″) Width: 241 mm (9.5″) Thickness: 0.16 ~ 0.52 mm (0.0063 ~ 0.0205″) (Total) |
| Consumables | |
|---|---|
| Ribbon Cartridge Black | Approx. 2.5 million characters (Draft 10 cpi, 48 dots/character) |
| Environmental Conditions (Operating) | |
|---|---|
| Temperature | 5 ~ 35°C |
| Humidity | 10 ~ 80 % RH |
| Acoustic Noise | |
|---|---|
| Acoustic Noise | Approx. 53 dB(A) (ISO 7779 pattern) |
| Input Data Buffer | |
|---|---|
| Input Data Buffer | 128KB |
The Epson LQ-310 Dot Matrix Printer is designed for businesses that demand high-speed and reliable performance. With a 24-pin dot matrix technology, it delivers sharp and clear prints, making it ideal for invoices, receipts, and multi-part forms. Featuring 128KB memory, the LQ-310 processes data faster and improves productivity. Compact yet durable, this printer supports up to 10,000 hours of Mean Time Between Failure (MTBF) for long-lasting performance. Its cost-efficient operation and compatibility with a wide range of paper types make it perfect for offices, retail, and logistics businesses.
Key Features:
High-speed printing up to 416 characters per second
Durable 24-pin print head technology
Supports multi-part forms (1 original + 4 copies)
Compact design for space-saving setup
Energy-efficient and cost-effective
Get the Epson LQ-310 Dot Matrix Printer today and enjoy seamless, high-quality printing for all your business needs.
