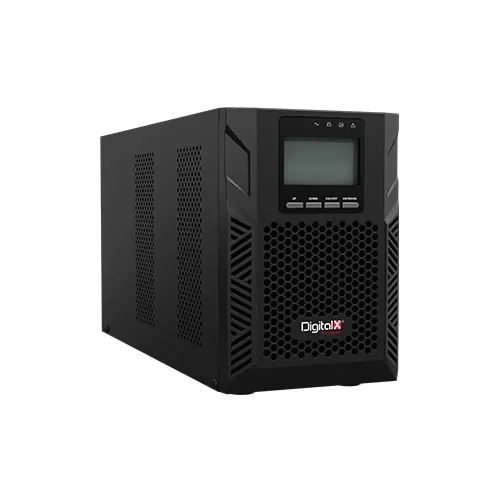

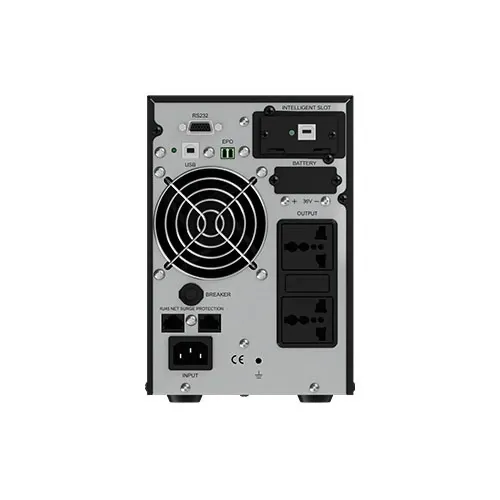

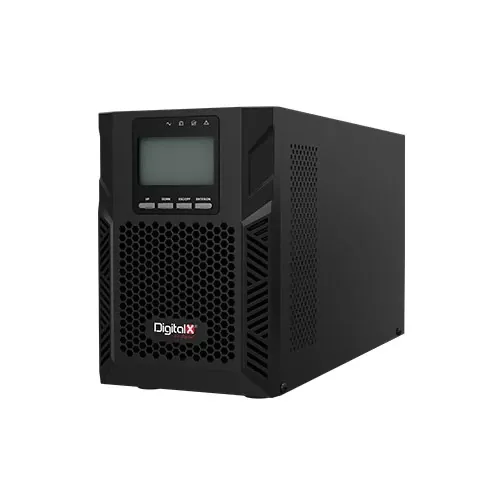

Digital X MP910S Online UPS 1000VA / 900W – Pure Sine Wave True Online UPS with LCD Display, 3x 12V/8.2Ah Batteries
- High power density
- Online double conversion with full digital control
- Smart charger design for optimized battery performance
- Emergency power off function (EPO)
- ECO mode operation for energy saving
- Generator compatible
- Intelligent fan speed regulation
- Load segment settable (Optional)
- Cold Start
- Multiple protection Function : (Short-Circuit, Overload, Overheat, Battery Over Charge & Over Discharge, Output Low Voltage & Fan Fault Alarm).
TBA
| General Specifications | |
|---|---|
| Model | MP910S |
| Capacity | 1000VA / 900W |
| Input | |
| Nominal Voltage | 208 / 220 / 230 / 240VAC |
| Input Voltage Range | 110–300VAC (176–264VAC at 100% Load) |
| Power Factor | ≥0.99 |
| Frequency | |
| Frequency Range | 40–70Hz (50/60Hz Auto-Sensing) |
| Output | |
| Output Voltage | 208 / 220 / 230 / 240VAC |
| Voltage Regulation | ±1% |
| Power Factor | 0.9 |
| Output Frequency (Line Mode) | 46–54Hz or 56–64Hz |
| Output Frequency (Battery Mode) | (50/60 ± 0.1%)Hz |
| Crest Factor | 3:1 |
| Harmonic Distortion (THDv) | ≤3% (Linear Load), ≤5% (Non-linear Load) |
| Transfer Time (AC to Battery Mode) | 0ms |
| Transfer Time (Inverter to Bypass) | 4ms (Typical) |
| Output Waveform | Pure Sine Wave |
| Efficiency | |
| AC / Line Mode | 88% |
| Battery Mode | 85% |
| Battery | |
| Battery Configuration | 3 Batteries, 12V / 8.2Ah Each |
| Typical Recharging Time | 4 hours (to 90% of Full Capacity) |
| Backup Time (50% Load) | 12 minutes |
| Backup Time (Full Load) | 5 minutes |
| Maximum Charging Current | 1A |
| Indicators | |
| LED Display | Line Mode, Battery Mode, ECO Mode, Bypass Mode, Low Battery Voltage, Overload, UPS Fault |
| LCD Display | Input Voltage, Input Frequency, Output Voltage, Output Frequency, Load Percentage, Battery Voltage, Internal Temperature, Remaining Battery Backup Time |
| Alarms | |
| Battery Mode | Beeping Every 4 Seconds |
| Low Battery | Beeping Every Second |
| Overload | Beeping Twice Every Second |
| Fault | Continuous Beeping |
| Physical Specifications | |
| Dimensions (W × D × H) | 144 × 293 × 209 mm |
| Net Weight | 10.80 kg |
| Gross Weight | 11.70 kg |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | −25°C to 55°C |
| Humidity Range | 20–95% RH at 0–40°C (Non-condensing) |
| Operating Altitude | Below 1,500 m; derating required above 1,500 m |
| Noise Level | <50 dB at 1 meter |
| Standards & Compliance | |
| Safety | IEC/EN 62040-1, IEC/EN 62477-1 |
| EMC | IEC/EN 62040-2, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2 |
The MP910S 1000VA / 900W True Online UPS is a compact, enterprise-grade power protection solution designed to keep sensitive servers, networking equipment, medical devices, and high-end workstations running safely without interruption. Built on true double-conversion technology with 0ms transfer time and pure sine wave output, it shields critical electronics from power surges, sags, spikes, and total blackouts. Featuring an advanced microprocessor control system, wide input voltage range (110–300Vac), and a detailed multi-functional LCD panel, the MP910S ensures clean, stable, and uncompromised power output for small office and commercial setups.
What is the price of Digital X MP910S Online UPS 1000VA / 900W – Pure Sine Wave True Online UPS with LCD Display, 3x 12V/8.2Ah Batteries in Bangladesh?
The latest price of Digital X MP910S Online UPS 1000VA / 900W – Pure Sine Wave True Online UPS with LCD Display, 3x 12V/8.2Ah Batteries in Bangladesh is
TBA
