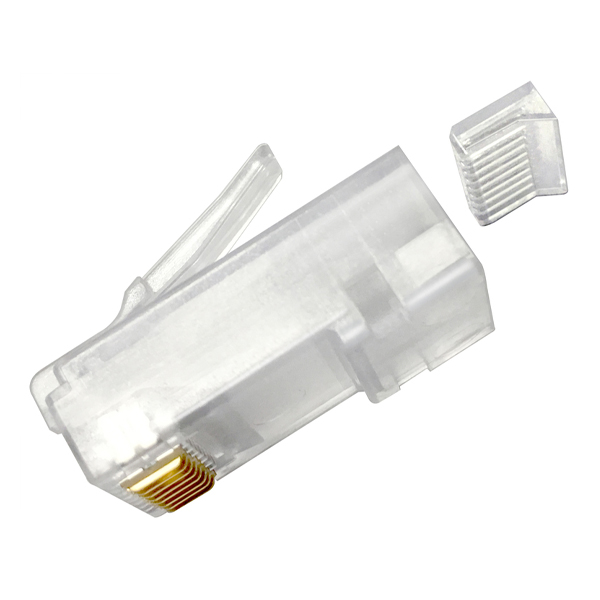

Commscope RJ 45 Connector CAT6A
-
RJ45 CAT 6A Connector
TBA
| Product Classification | |
|---|---|
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin | America | North America |
| Portfolio | CommScope® |
| Product Type | Modular plug |
| General Specifications | |
|---|---|
| ANSI/TIA Category | 6 | 6A |
| Cable Type | Round, unshielded |
| Conductor Type | Solid | Stranded |
| Interface | RJ45 |
| Positions/Loaded Contacts | Standard |
| Positions/Loaded Contacts | 8/8 |
| Termination Type | IDC |
| Dimensions | |
|---|---|
| Compatible Insulated Conductor Diameter, maximum | 1.09 mm | 0.043 in |
| Compatible Insulated Conductor Diameter, minimum | 0.89 mm | 0.035 in |
| Contact Plating Thickness | 1.27 µm |
| Compatible Conductor Gauge, solid | 26–23 AWG |
| Compatible Conductor Gauge, stranded | 26–23 AWG |
| Dimensions | |
|---|---|
| Current Rating, maximum | 0.75 A |
| Insulation Resistance, minimum | 500 mOhm |
| Safety Voltage Rating | 150 Vac |
What is the price of Commscope RJ 45 Connector CAT6A in Bangladesh?
The latest price of Commscope RJ 45 Connector CAT6A in Bangladesh is
TBA
