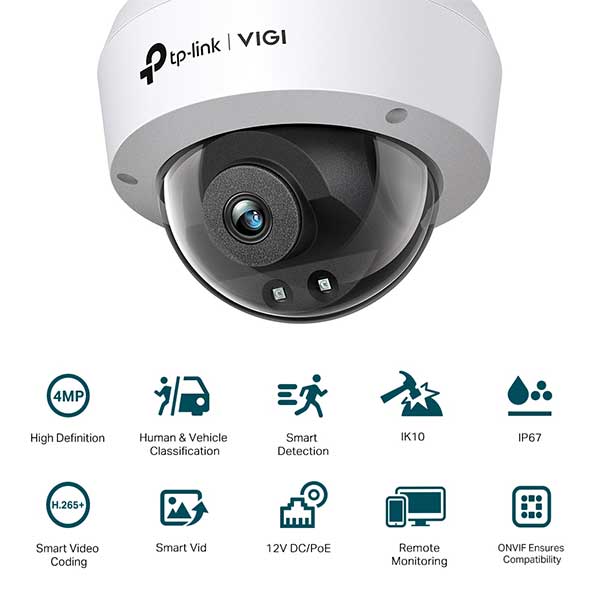

TP-Link VIGI C240I 4MP IR Dome Network Camera

  • 4MP Super-High Definition: The VIGI C240I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.

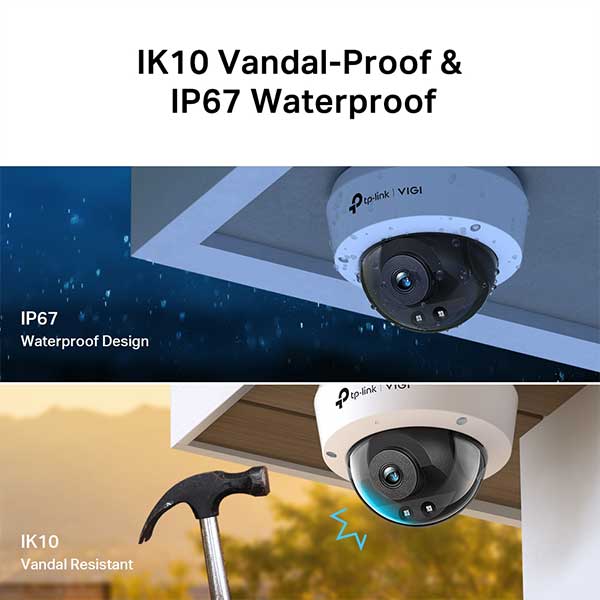

  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

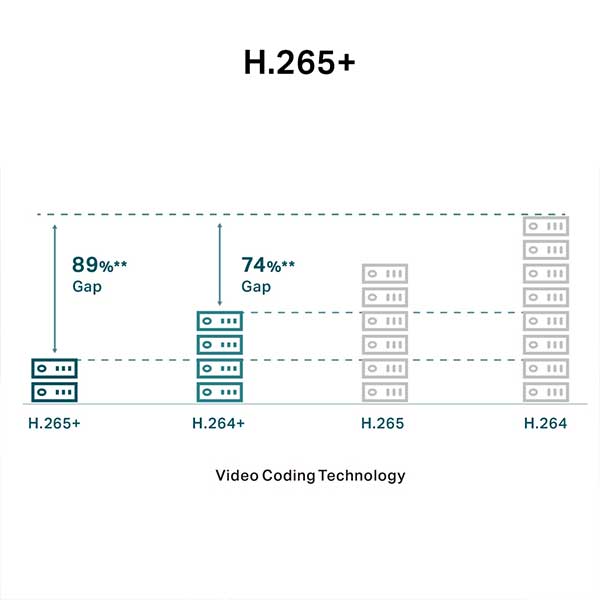

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

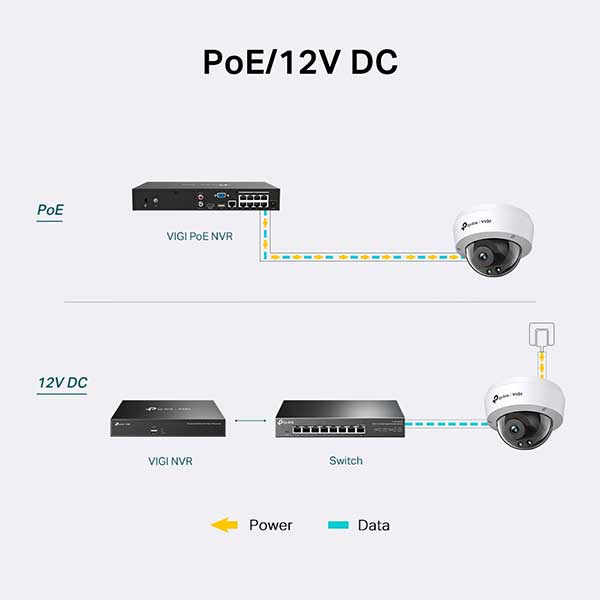

  • PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
  • 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C240I comes with two different lens types to better suit your security needs.
  • Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

TBA

SKU: VIGI C240I Categories: , , ,
TP-Link
CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Day/Night Switch Unified/ Scheduled/ Auto
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination Color: 0.01 Lux; 0 Lux witd IR light
Day/Night Mechanism IR Cut Filter
LENS
Type Fixed Focal Lens
Focal Lengtd 2.8 mm/4 mm
Aperture 2.8 mm: F2.2
4 mm: F2.2
FOV 2.8 mm:
Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5°4 mm:
Horizontal FOV: 75.1°, Vertical FOV:
41.5°, Diagonal FOV: 88.7°
Lens Mount M12
DORI Distance 2.8 mm:
Detect:60 m (197 ft)
Observe: 25 m (82 ft)
Recognize: 12 m (39 ft)
Identify: 6 m (20 ft)4 mm:
Detect:
80 m (262 ft)
Observe:33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
Range Pan: 0° to 355°
Tilt: 0° to 75°
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelengtd: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2560 × 1440
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:
2560×1440,2304×1296, 2048×1280, 1920×1080, 1280x720Note: If tde image rotation is set to 90° or 270°, tde frame rate only supports
up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:
640×480,352×288, 320x240Note: If tde image rotation is set to 90° or 270°, tde frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable
by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication N/A
Audio Input N/A
Audio Output N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Autdentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering
Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Metdod N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Etdernet Port, PoE
Alarm N/A
Reset Button N/A
Power DC Power Port
On-board Storage N/A
Built-in Microphone N/A
Built-in Speaker N/A
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)

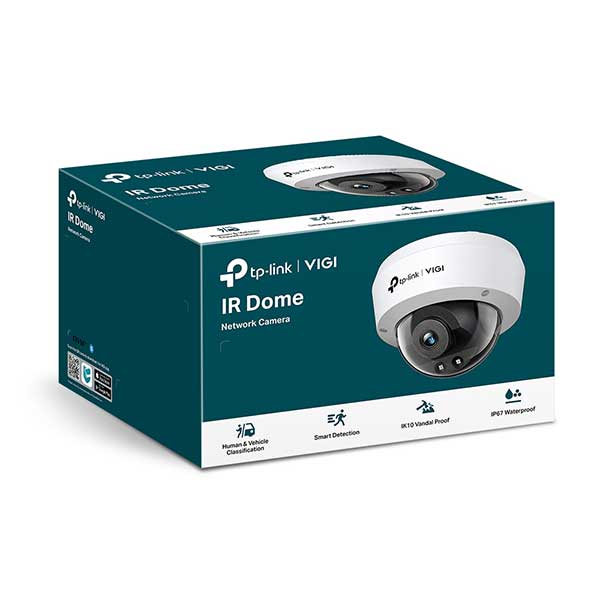

Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Net Weight 0.27 Kg
Gross Weight 0.45 Kg
Power Supply 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug
PoE: 802.3af/at, class 0, Max. 5.5 W
Protection IP67, IK10
Product Dimensions (L x W x H) 115× 86× 115 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
What is the price of TP-Link VIGI C240I 4MP IR Dome Network Camera in Bangladesh?
The latest price of TP-Link VIGI C240I 4MP IR Dome Network Camera in Bangladesh is

TBA

.
