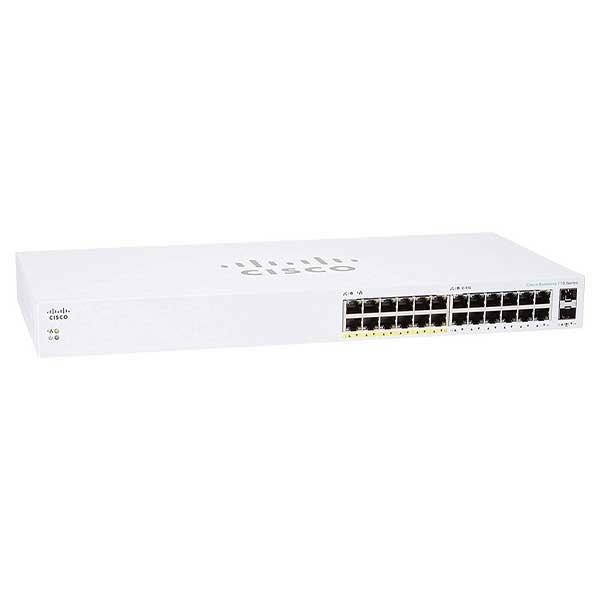

Cisco CBS110-24PP-EU Unmanaged PoE Switch
- High performance: Cisco Business 110 Series switches deliver the performance you need to run your business applications, including bandwidth-intensive cloud applications and video services, and to avoid slow and sluggish networks. They support Gigabit Ethernet speeds, unlocking a new level of capacity and performance in your business network and letting you transfer large files in seconds.
- Reduced energy costs: Cisco Business 110 Series switches are designed to help conserve energy by optimizing power use without compromising performance, which protects our environment and reduces your energy costs. In addition, they support the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
- Peace of mind: Cisco Business 110 Series switches deliver the rock-solid reliability you expect from a Cisco switch. The solution has been rigorously tested to make sure of optimal uptime and performance. In addition, the limited lifetime hardware warranty provides peace of mind.
TBA
Cisco Business 110 Series Switch Specifications
| Description | Specification |
|---|---|
| Capacity | 35.7 million packets per second (mpps) (64-byte packets) |
| Switching Capacity | 48 Gbps |
| Total System Ports | 24 Gigabit Ethernet |
| RJ-45 Ports | 24 Gigabit Ethernet |
| PoE Power | 100W |
| Number of PoE Ports | 12 |
| Packet Buffer | 2 Mbit |
| Unit Dimensions (W x D x H) | 440 x 203 x 44 mm (17.32 x 7.97 x 1.73 in) |
General
| Description | Specification |
|---|---|
| Head-of-Line Blocking | Prevention included |
| MAC Table | 2K addresses for CBS110-5T-D, 8K addresses for all other models |
| Jumbo Frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing, Weighted Round-Robin (WRR) |
| Loop Detection | Helps discover loops to avoid broadcast storms |
| Cable Diagnostics | Identify and troubleshoot network cable faults/shorts |
| Media-Dependent Interface | Automatic MDI/MDI-X |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
Hardware
| Description | Specification |
|---|---|
| LEDs | Power, link/activity, Gigabit, *PoE, *Max PoE (*if present) |
| Cabling Type | Category 5e or better |
| Mounting Options | Desktop, wall-mount, or rack mount |
| Physical Security Lock | Kensington lock slot |
| Flash | 16 MB for CBS110-16T, CBS110-16PP; 8 MB for CBS110-24T, CBS110-24PP |
| CPU | 400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP |
| CPU Memory | 128 MB for CBS110-16T, CBS110-16PP; 64 MB for CBS110-24T, CBS110-24PP |
| Supported SFP Modules | MGBSX1 (Multimode fiber, 1000 Mbps, 500 m), MGBLX1 (Single-mode fiber, 1000 Mbps, 10 km), MGBLH1 (Single-mode fiber, 1000 Mbps, 40 km), MGBT1 (UTP cat 5e, 1000 Mbps, 100 m) |
Environmental
| Description | Specification |
|---|---|
| Power | CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A; CBS110-8PP-D: DC 48V, 1.25A; CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal |
| Green (Power Efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/Certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B (select models) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | –4° to 158°F (–20° to 70°C) |
| Operating Humidity | 10% to 90%, relative, noncondensing |
| Storage Humidity | 5% to 90%, relative, noncondensing |
Warranty
| Description | Specification |
|---|---|
| Warranty | Limited lifetime |
Cisco Business 110 Series Unmanaged Switches, part of the Cisco Business networking portfolio, are a family of affordable switches that provide Gigabit Ethernet connectivity for your small business network. Available in desktop and rack-mount models, these switches are designed to suit any small business with basic network needs and are optimized for power efficiency. They provide robust network connectivity your business demands, as well as added reliability with advanced features such as Quality of Service (QoS), loop detection, and cable diagnostics, all in a switch that you can set up yourself in minutes.
What is the price of Cisco CBS110-24PP-EU Unmanaged PoE Switch in Bangladesh?
The latest price of Cisco CBS110-24PP-EU Unmanaged PoE Switch in Bangladesh is
TBA
