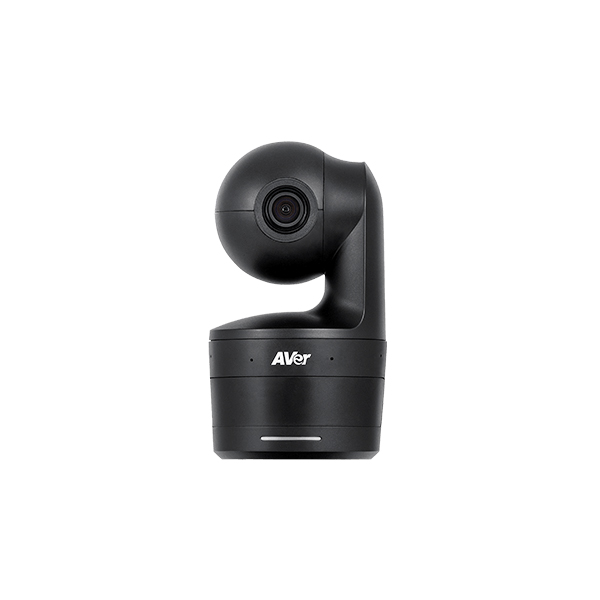

AVER DL10 DISTANCE LEARNING TRACKING CAMERA
Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.
TBA
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ 1080p Low Lux CMOS |
| Effective Picture Elements | 2 Megapixels |
| Output Resolutions | 1080p/60 (IP Streaming & USB) |
| Minimum Illumination | 0.5 Lux (IRE50, F2.0, 30fps) |
| S/N Ratio | ≥ 50 dB |
| Gain | Auto, Manual |
| TV Lines | 800 (Center/Wide) |
| Shutter Speed | 1/4 to 1/10,000 sec (60 Hz)
1/3 to 1/10,000 sec (50 Hz) |
| Exposure Control | Auto, Manual, WDR |
| WDR | Yes |
| White Balance | Auto, Manual |
| Optical Zoom | 3X |
| Digital Zoom | 2X |
| Viewing Angles | DFOV: 90° (Wide) to 35.8° (Tele)
HFOV: 82° (Wide) to 31.7° (Tele) VFOV: 51° (Wide) to 17.9° (Tele) |
| Focal length | f = 3.3 mm (Wide) to 9.7 mm (Tele) |
| Aperture (Iris) | F = 2.0 (Wide) to 3.7 (Tele) |
| Minimum Working Distance | 0.5 m (Wide), 1.0 m (Tele) |
| Pan/Tilt Angles | Pan : ±170°, Tilt : ±90° |
| Pan/Tilt Speed (Manual) | Pan: 1° to 100°/sec
Tilt: 10.8° to 100°/sec |
| Preset Speed | Pan : 200°/sec, Tilt : 200°/sec |
| Preset Positions | 10 (IR), 256 (IP & USB) |
| Camera Control – Interfaces | IP, USB |
| Camera Control – Protocols | VISCA (IP), CGI (IP), USB |
| Image Processing | Noise Reduction (2D/3D), Flip, Mirror, WDR |
| Power Frequencies | 50 Hz, 60 Hz |
| AI Auto Tracking Functions | |
|---|---|
| Tracking Modes | Presenter Mode, Zone Mode, Hybrid Mode |
| Gesture Control | Yes (Tracking On/Off, Full/Upper Body) |
| Privacy Protection Mechanisms | |
|---|---|
| Protection Modes | Privacy Mode, Sleep Mode |
| Audio | |
|---|---|
| Channels | Line in: 2ch Stereo
Mic in: Mono |
| Codecs | AAC-LC (48, 32, 16, 8K), PCM (48K) |
| Sample Rates | 48, 32, 16, 8 KHz |
| Microphones | |
|---|---|
| Built-in Microphones | 2 (Omnidirectional) |
| Noise Suppression | Yes |
| Pickup Range | 5 m |
| Sensitivity | -33 dBFS |
| Frequency Response | 30 Hz to 20 KHz |
| Maximum SPL | 129 dB SPL at 0.5 m |
| Interface | |
|---|---|
| Video Outputs | IP, USB |
| Audio Outputs | IP, USB |
| Audio Inputs | Line in, Mic in |
| General | |
|---|---|
| Power Requirement | AC 100 – 240V to DC 12V/2A |
| Power Consumption | 11W |
| PoE+ | N/A |
| Dimensions (W x H x D) | 92.4 x 164.0 x 94.4 mm |
| Net Weight | 0.76 kg |
| Application | Indoor |
| Tally Lamp | N/A |
| Security | Kensington Slot |
| Remote Control | Infrared |
| Operating Conditions | Temperature: 0°C to 40°C
Humidity: 20% to 80% |
| Storage Conditions | Temperature: -20°C to 60°C
Humidity: 20% to 95% |
| IP Streaming | |
|---|---|
| Resolution | 1080p 60fps |
| Network Video Compress Formats | H.264, MJPEG (Web Page) |
| Network Audio Compression Formats | AAC-LC |
| Sample Rates | 48, 32, 16, 8 KHz |
| Maximum Frame Rate | 1080p 60fps |
| Bit-Rate Control Modes | VBR, CBR |
| Bit-Rate Range Setting | 512 Kbps to 32 Mbps |
| Network Interface | 10/100 Base-T |
| Multi-Stream Capability | 2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.) |
| Network Protocols | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP |
| NDI®|HX Capability | N/A |
| USB | |
|---|---|
| Connector | USB 3.1 Gen 1 Type-B |
| Video Formats | MJPEG, YUY2 |
| Maximum Video Resolution | 1080p |
| USB Video Class (UVC) | UVC 1.1 |
| USB Audio Class (UAC) | UAC 1.0 |
| Web UI | |
|---|---|
| Live Video Preview | Yes |
| Camera PTZ Control | Pan, Tilt, Zoom, Focus, Preset Control |
| Camera / Image Adjustment | Exposure, White Balance, Picture |
| Network Configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Software Tools | |
|---|---|
| IP Search and Configuration Tool | Supports Windows® 7 or later |
| PTZ Management | Supports Windows® 7 or later |
| PTZ Control Panel | Supports iOS & iPadOS® 9 or later |
| OBS Plugin for PTZ Cameras | Supports Windows® 8 or later, macOS® 10.13 or later |
| CaptureShare | Supports Windows® 7 or later, macOS® 10.14 or later |
| Warranty | |
|---|---|
| Camera | 3 Years |
| Accessories | 1 Year |
| Others | |
|---|---|
| Package Contents | Camera
Remote Control Power Adapter Power Cord USB Cable Cable Ties (x3) Cable Fixing Plate M2 x 4mm Screws (x2) 1/4″-20L 7.5mm Screw (x1) Quick Start Guide |
| Optional Accessories | Wall Mount Kit
Brackets (x2) M4 x 8mm Screws (x2) 1/4″-20L 7.5mm Screw (x1) Wall Mount Kit Installation Guide Ceiling Mount Kit Brackets (x2) M3 x 6mm Screws (x3) 1/4″-20 L7.5mm Screws (x3) Ceiling Mount Kit Installation Guide |
