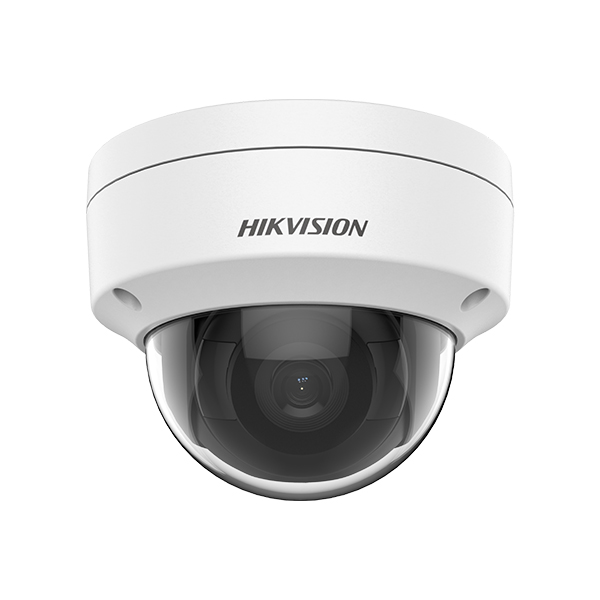

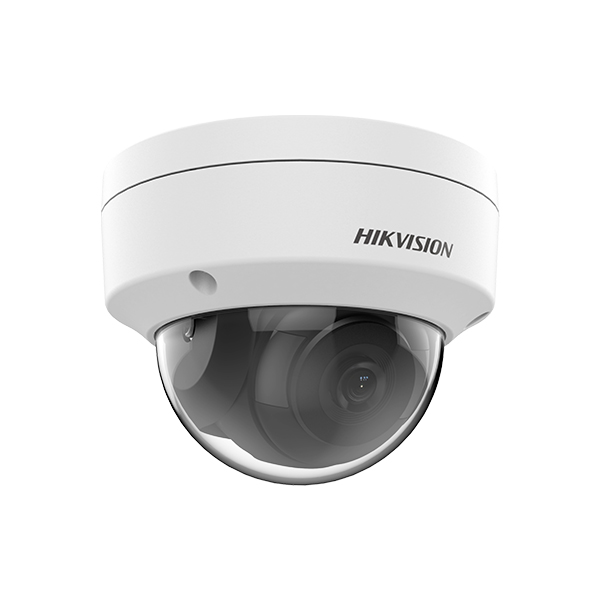

Hikvision DS-2CD1143G0-I 4.0 MP IR Network Dome Camera

  • 1/3″ progressive scan CMOS
  • 3D DNR (Digital Noise Reduction)
  • 2560 × 1440@20fps
  • Up to 30 m IR range
    2.8 mm/4 mm fixed lens
  • PoE (Power over Ethernet)
  • H.265+, H.265, H.264+, H.264  IP67, IK10
  • Triple stream
  • 120 dB WDR (Wide Dynamic Range)
SKU: DS-2CD1143G0-I Categories: , Product Brand:

Camera

Image Sensor 1/3″ progressive scan CMOS

Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed 1/3 s to 1/100, 000 s

Slow Shutter Yes

Auto-Iris No

Day &Night IR cut filter

Digital Noise Reduction 3D DNR

WDR 120 dB

Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°

Lens

Focal Length 2.8 mm, 4 mm

Aperture F2.0

Focus No

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

Lens Mount M12

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

Third stream:H.265/H.264

H.264 Type Baseline Profile/Main Profile/High Profile

H.264+ Main stream supports

H.265 Type Main Profile

H.265+ Main stream supports

Video Bit Rate 32 Kbps to 8 Mbps

Smart Feature

Region of Interest 1 fixed region for main stream and sub-stream

Behavior Analysis Line crossing detection, intrusion detection

Network

Network Storage NAS (NFS, SMB/CIFS)

Alarm Trigger Motion detection, video tampering alarm, illegal login

Specification

Available Models

DS-2CD1143G0-I/F (2.8 mm), DS-2CD1143G0-I/F (4 mm)

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,

SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version 5.5.3

API ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client iVMS-4200, Hik-Connect, iVMS-5200

Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

Reset Button Yes

General

Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)

Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Ingress Protection

IP67, IK10

TVS 2000V lightning protection, surge protection and voltage transient protection

Material Metal & Plastic

Dimensions

Camera: Ø 111 mm × 82.4 mm ( 4.4″ × 3.2″)

With package: 134 mm × 134 mm × 108 mm (5.3″ × 5.3″ × 4.3″)

Weight Camera: approx. 410 g (0.9 lb.)

With package: approx. 610 g (1.3 lb.)
