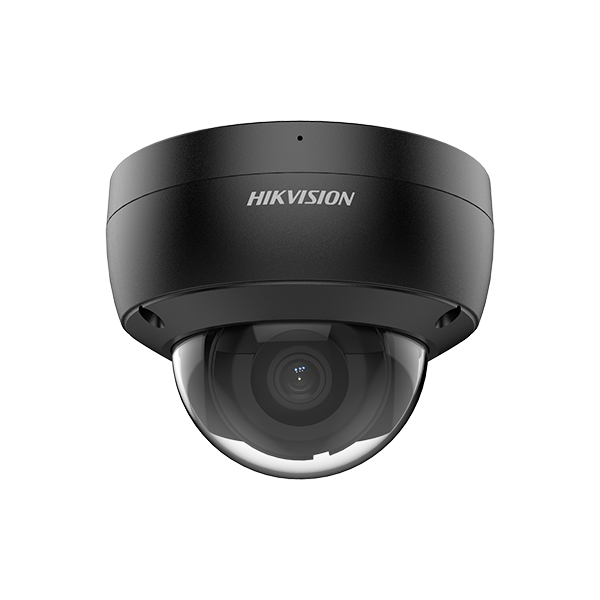

HIKVISION DS-2CD2143G2-IU 2.8MM 4MP DOME IP BUILT-IN AUDIO CAMERA

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Built-in microphone for real-time audio security
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Focus on human and vehicle targets classification based on deep learning

11,900.00৳

SKU: DS-2CD2143G2-IU 2.8MM Categories: , , Tag:
Hikvision
Camera
Image Sensor 1/3″ Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed
Slow Shutter
Shutter Time 1/3 s to 1/100, 000 s
Day & Night IR Cut Filter
Wide Dynamic Range
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
Lens Type
DORI 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m
Aperture F1.6
Focus Fixed
Lens Mount M12
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Max. Resolution
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Video Compression Main stream: H.265/H.264/H.264+/H.265+Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
Video Bit Rate 32 Kbps to 8 Mbps
H.265 Type Main Profile
Region Of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate –
64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -UF: Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
API Open Network Video Interface, ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users,3 levels: Administrator, Operator, and User
Network Storage Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect,
Alarm Trigger
Web Browser Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+
Image Enhancement BLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in Micro SD slot, up to 256 GB
Audio
Alarm
Hardware Reset Yes
Event
Smart Event Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Face detection
Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
General
Firmware Version
General Function Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Power Supply 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
Camera Dimension 69.7 mm × 67.9 mm × 171.4 mm (2.7″ × 2.7″ × 6.7″)
Dimensions Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″)
Package Dimension 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Approx. 570 g (1.3 lb.)
Camera Material Metal & Plastic
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Camera Weight
With Package Weight Approx. 806 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Language 33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU);Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
What is the price of HIKVISION DS-2CD2143G2-IU 2.8MM 4MP DOME IP BUILT-IN AUDIO CAMERA in Bangladesh?
The latest price of HIKVISION DS-2CD2143G2-IU 2.8MM 4MP DOME IP BUILT-IN AUDIO CAMERA in Bangladesh is

11,900.00৳

.
