DS-7204HGHI-F1-4ch-1080p-Lite-1U-H.264-DVR,-4channels-and-1-HDD-
DS-7204HGHI-F1-4ch-1080p-Lite-1U-H.264-DVR,-4channels-and-1-HDD-

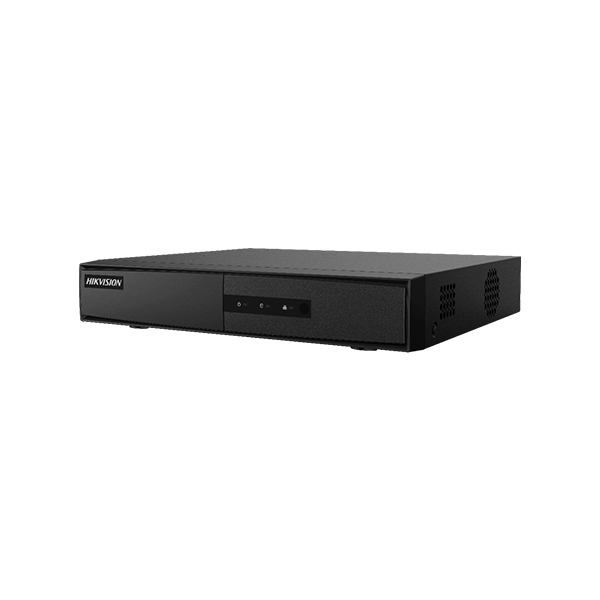

HIKVISION DS-7204HGHI-F1 4-CH TURBO HD 720P DVR

  • 4 channels and 1 HDD 1U DVR
  • H.264+ / H.264 video compression
  • Encoding ability up to 1080p lite @ 25/30 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 5 network cameras can be connected

MRP. 5,620.00৳

SKU: DS-7204HGHI-F1 Categories: , , , Tag:
Hikvision
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;
Remote Connection 32
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interfacet 1, RJ45 10M/100M self-adaptive Ethernet interface
Recording
Video Compression H.264+/H.264
Encoding Resolution

When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),

Video Bitrate 32 Kbps to 4 Mbps
Dual-Stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Video And Audio
IP Video Input

1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras
Analog Video Input 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30.
AHD Input 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input Support
VGA/HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback 4-ch
Video Output Mode HDMI/VGA simultaneous output
HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Two-Way Audio Reuse the first audio input
Network
Total Bandwidth 32 Mbps
Remote Connection TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
Alarm In/Out N/A
USB Interface Rear panel: 2 × USB 2.0
General
Power Supply 12 VDC, 1.33 A
Consumption ≤ 7 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Weights (Without HDD) ≤ 1 kg (2.2 lb)
Consumption(Without HDD) ≤ 8 W
Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
What is the price of HIKVISION DS-7204HGHI-F1 4-CH TURBO HD 720P DVR in Bangladesh?
The latest price of HIKVISION DS-7204HGHI-F1 4-CH TURBO HD 720P DVR in Bangladesh is

MRP. 5,620.00৳

.
