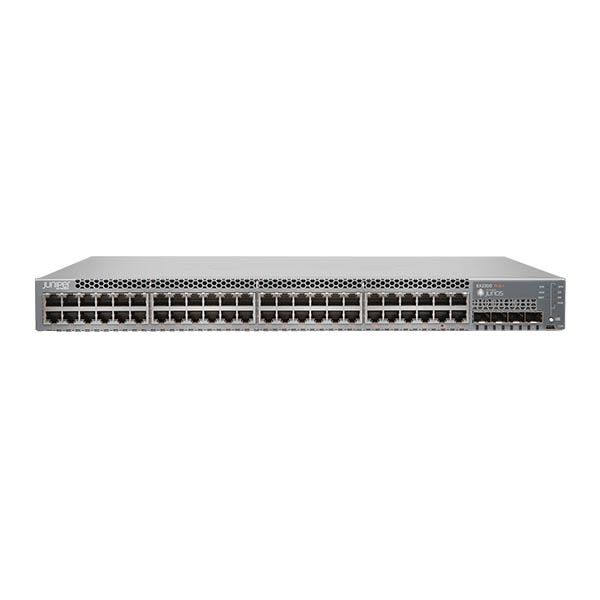

Juniper EX2300-24MP
100M/1/2.5GbE and SFP+ uplink port options
1 RU
PoE/PoE+ up to 30W per port
264 Gbps
Virtual Chassis
TBA
| Specifications | |
|---|---|
| Form factor | Fixed 1 U access |
| Port density | EX2300-48MP: 16 x 100M/1/2.5GbE, 32 x 1GbE and 6 SFP/SFP+ 10GbE EX2300-24MP: 8 x 100M/1/2.5GbE, 16 x 1GbE and 4 SFP/SFP+ 10GbE |
| Wired Assurance | Yes |
| Campus Fabrics | Virtual Chassis |
| Cloud Managed | Yes |
| Dimensions (W x H x D) | EX2300-48MP: 17.4 x 1.75 x 14.5 in. (44.19 x 4.45 x 36.83 cm) EX2300-24MP: 17.4 x 1.75 x 10.0 in. (44.19 x 4.45 x 25.4 cm) |
| Backplane speed | 120 Gbps Virtual Chassis interconnect to link up to four EX2300-48MP switches as a single logical device 80 Gbps Virtual Chassis interconnect to link up to four EX2300-24MP switches as a single logical device |
| Data rate | EX2300-48MP: 264 Gbps EX2300-24MP: 208 Gbps |
| Throughput | EX2300-48MP: 196 Mpps EX2300-24MP: 154 Mpps |
| Resiliency | Integrated power supply and fans |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 |
| MAC addresses | 16,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 4096 / 4096 |
| IPv6 unicast/multicast routes | 2048 / 2048 |
| Number of VLANs | 4093 |
| ARP entries | 5000 |
The EX2300 Multigigabit Ethernet Switch delivers a compact 1 RU high-density solution for small network environments with space, power, and budget constraints. Multigigabit access ports (1/2.5GbE) deliver the performance and power for wired devices, making them ideal platforms for access layer refreshes or new greenfield deployments.
The switches offer IEEE 802.3af Power over Ethernet (PoE)/802.3at PoE+ for powering attached network devices, delivering a unified wired and wireless solution for your Wi-Fi 6 and 802.11ac access points.
The EX2300 Multigigabit switch is cloud-ready and ZTP-enabled, so you can onboard, configure, and manage it with Juniper Mist™ Wired Assurance for improved connected-device experiences. In addition, the Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI simplifies operations and improves visibility into the performance of connected devices. EX2300 Multigigabit switches support Juniper’s Virtual Chassis technology, which simplifies operations by interconnecting up to four switches that can be managed as a single logical device.
TBA
