OLT

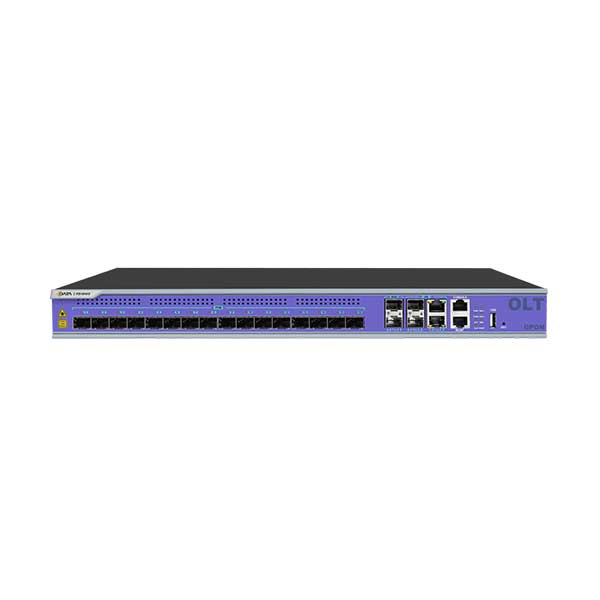

C-DATA FD1616S-B1-PDA0 16PON GPON OLT – 10G UPLINK

  • 1U rack-mounted device with 1 USB interface
  • 2 Uplink Ethernet ports
  • 2 Uplink SFP ports
  • 2*10GE uplink ports
  • 16 GPON ports
  • QOS Guarantee
  • Easy-to-Use management system

TBA

SKU: FD1616S-B1-PDA0 Categories: , , , , Tag:
C-Data
Category Specification
Mechanics
Management Rack 1U 19-inch standard box
Dimensions 440mm (L) × 276mm (W) × 44mm (H)
Weight 4.50Kg
Hardware
Uplink Port 2 × 10/100/1000M auto-negotiation Ethernet ports
2 × SFP interfaces
2 × 10-Gigabit SFP+ interfaces
PON Port Quantity 16
Physical Interface SFP slot
Interface Type GPON: ITU-T G.984.2 Class B+ / Class C+
Max Splitting Ratio GPON: 1:128
Management Port 1 × 100/1000BASE-Tx out-band Ethernet port
1 × CONSOLE local management port
USB Port 1 × USB interface (Backup configuration, upgrade program, record logs)
PON Port Attributes
Transmission Distance 20KM
Port Rate GPON: Downstream: 2.5Gbps / Upstream: 1.25Gbps
Wavelength Forwarding: 1490nm
Receiving: 1310nm
Interface Type SC/UPC
Fiber Type 9/125μm SMF (Single Mode Fiber)
Light Transmission Power Class B+: +1.5 ~ +5dBm
Class C+: +3 ~ +7dBm
Receiving Sensitivity Class B+: -28dBm
Class C+: -30dBm
Saturation Power Class B+: -8dBm
Class C+: -12dBm
Backplane Bandwidth 108G
Power Supply
AC 100V ~ 240V, 47~63Hz
DC -40V ~ -72V
Environment
Working Temperature -15 ~ 50℃
Storage Temperature -40 ~ 85℃
Ambient Humidity 5 ~ 90% (Non-condensing)
What is the price of C-DATA FD1616S-B1-PDA0 16PON GPON OLT – 10G UPLINK in Bangladesh?
The latest price of C-DATA FD1616S-B1-PDA0 16PON GPON OLT – 10G UPLINK in Bangladesh is

TBA

.
