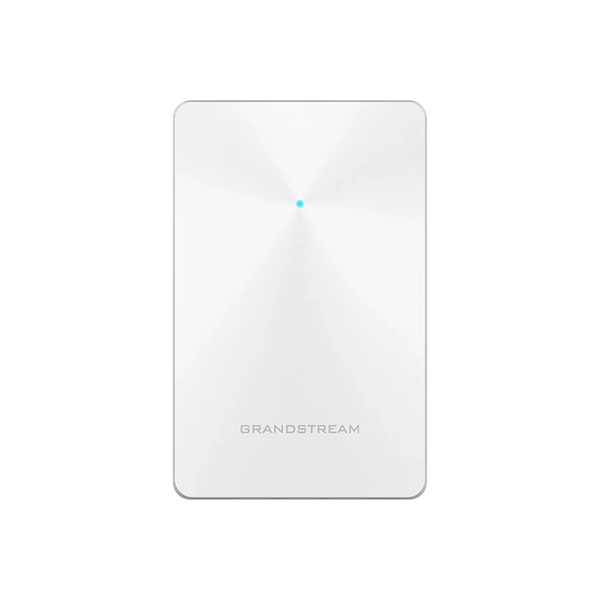

Grandstream GWN7624 Dual-Band Wi-Fi 5 In-Wall Access Point
-
Up to 2033Mbps aggregate wireless throughput
-
Four 1000Mbps Gigabit Ethernet ports
-
One Gigabit uplink port with PoE/PoE+ support
-
Two Gigabit Ethernet ports with PoE power sourcing (PSE)
-
Dual-band 2×2:2 MIMO (2.4GHz) and 4×4:4 MU-MIMO (5GHz)
-
Supports up to 200 concurrent Wi-Fi clients
TBA
| WIRELESS | |
|---|---|
| Client Devices | 200+ |
| 2.4G Throughput | 300Mbps (2×2:2 MIMO) |
| 5G Throughput | 1733Mbps (4×4:4 MU-MIMO) |
| 6G Throughput | N/A |
| Range | Up to 175 Meters |
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac |
| SSIDs | 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz) |
| Antennas | Two 5G & two double frequency internal antennas |
| INTERFACES | |
| Network Interfaces | 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port |
| PoE/PoE+ | Support 802.3az; PoE 802.3af/ 802.3at PSE Maximum Output Per Port: 6W Maximum Power Consumption: 25W |
| SECURITY | |
| Wi-Fi and Security Systems | WEP, WPA/WPA2-PSK WPA/WPA2 Enterprise (TKIP/AES) WPA3 Anti-hacking secure boot and critical data/control lockdown via digital signatures Unique security certificate and random default password per device |
| PHYSICAL | |
| Dimensions | 135x86x38.5mm |
| Mounting | Wall Mountable |
The Grandstream GWN7624 is an enterprise-grade dual-band Wi-Fi 5 (802.11ac Wave 2) in-wall access point designed for small and medium-sized businesses, hotels, offices, apartments and commercial environments. It delivers up to 2033Mbps aggregate wireless throughput, with 300Mbps on the 2.4GHz band and 1733Mbps on the 5GHz band. Featuring 2×2:2 MIMO on 2.4GHz and 4×4:4 MU-MIMO on 5GHz, it provides reliable wireless connectivity for up to 200 concurrent Wi-Fi clients across an approximate coverage range of 100 metres. The GWN7624 includes four Gigabit Ethernet ports: one PoE/PoE+ uplink port, two ports with PoE power sourcing (PSE) for compatible devices, and one additional Gigabit Ethernet port. It also supports advanced QoS, mesh networking, captive portals, WPA3 security and automatic power adaptation. Its embedded controller manages up to 30 local GWN access points, while GDMS Networking and GWN Manager provide cloud-based and on-premises network management options. Its in-wall design makes it particularly suitable for hotel rooms, offices and other locations where wired connectivity and discreet installation are important.
