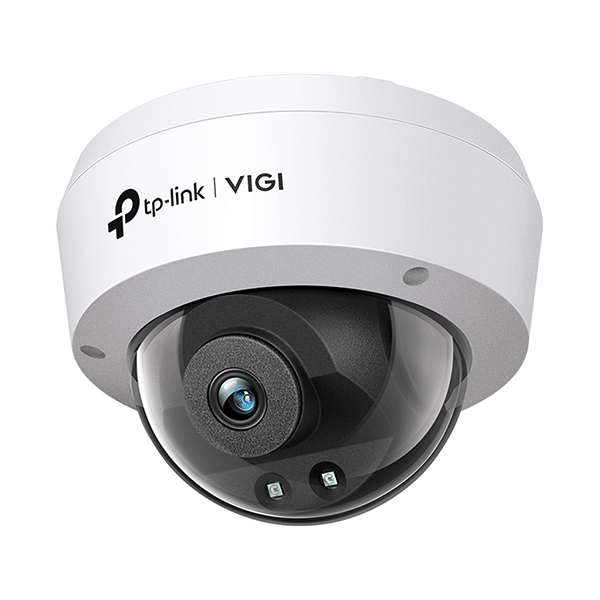

TP-Link VIGI C220I 2MP IR Dome Network Camera

  • 2MP Full-High Definition: The VIGI C220I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, or removes/abandons objects.
  • IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

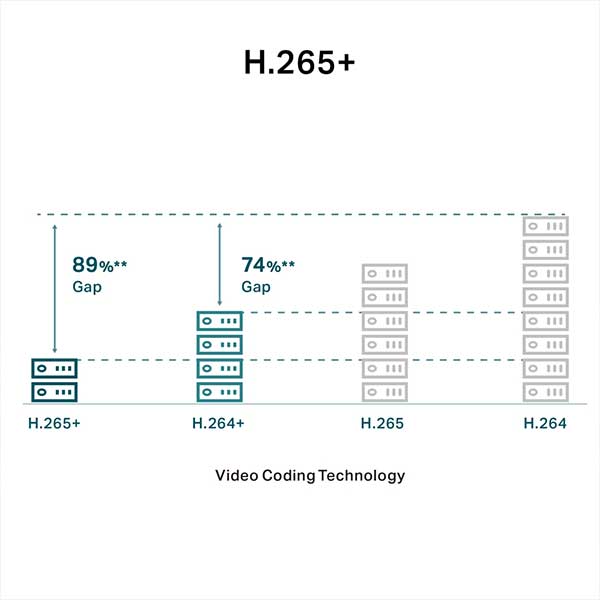

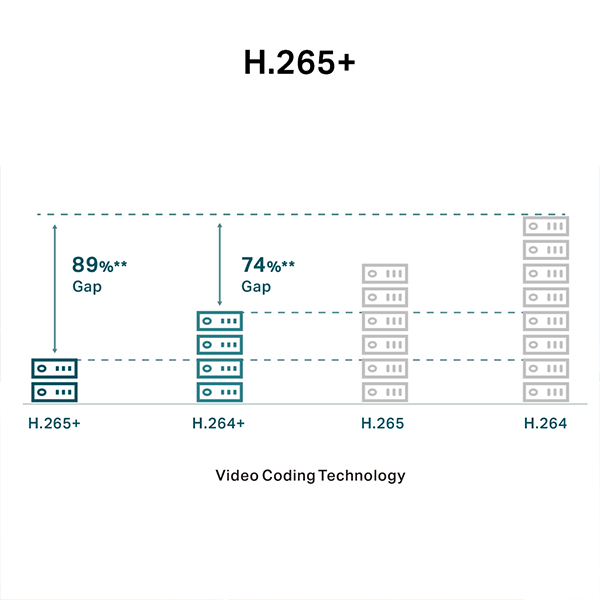

  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

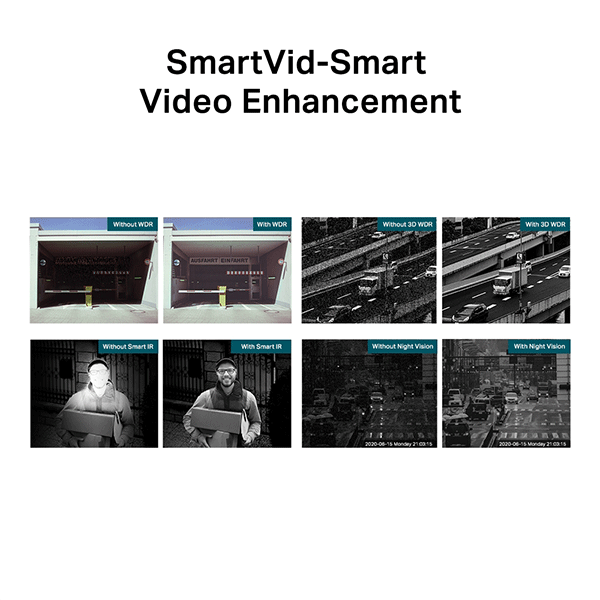

  • Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
  • Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C220I comes with two different lens types to better suit your security needs.
  • Flexible Management: Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.



TBA

SKU: VIGI C220I Categories: , , ,
TP-Link VIGI
CAMERA
Image Sensor 1/3” Progressive Scan CMOS
Day/Night Switch Unified/ Scheduled/ Auto
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination Color: 0.01 Lux; 0 Lux with IR
Day/Night Mechanism IR Cut Filter
LENS
Type Fixed Focal Lens
Focal Length 2.8 mm/4 mm
Aperture 2.8 mm: F2.2
4 mm: F2.0
FOV 2.8 mm:
Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°4 mm:
Horizontal FOV: 74.6°, Vertical FOV: 41.3°,
Diagonal FOV: 88.1°
Lens Mount M12
DORI Distance 2.8 mm:
Detect: 45 m (149 ft)
Observe:19 m (62 ft)
Recognize: 9 m (30 ft)
Identify: 5 m (15 ft)4 mm:
Detect:
60 m (198 ft)
Observe: 25 m (83 ft)
Recognize: 12 m (40 ft)
Identify: 6 m (20 ft)
ILLUMINATOR
IR LED Quantity: 2
Range: 30m
Wavelength: 850nm
White LED N/A
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 1920 × 1080
Main Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:1920×1080, 1280×960, 1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution:704×576, 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to
20fps.
Bit Rate Control CBR, VBR
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable
by Client Software, Rotation(90°/270°)
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range DWDR
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication N/A
Audio Input N/A
Audio Output N/A
Audio Compression N/A
Audio Sampling Rate N/A
Environment Noise Filtering N/A
Audio Bit Rate N/A
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF Yes
API ONVIF
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, Web UI
Web Browser NETWORK
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering
Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage Message Push
Linkage Method N/A
Output Notification Message Push
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm N/A
Reset Button N/A
Power N/A
On-board Storage N/A
Built-in Microphone N/A
Built-in Speaker N/A
Audio N/A
GENERAL
Operating Temperature -30–60 °C
Storage Temperature -40–60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Material Plastic
Net Weight 0.26 Kg
Gross Weight 0.43 Kg
Power Supply PoE: 802.3af/at, class 0, Max. 5.5 W
Protection IP67, IK10
Product Dimensions (L x W x H) 115× 86× 115 mm
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
