MikroTik CCR1016-12S-1S+ Ethernet Router

  • 1U rackmount
  • 12xSFP cage
  • 1xSFP+ cage
  • 16 cores x 1.2GHz CPU
  • 2GB RAM
  • LCD panel
  • Dual Power supplies
  • RouterOS L6

CCR1016 is an industrial Grade Router

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

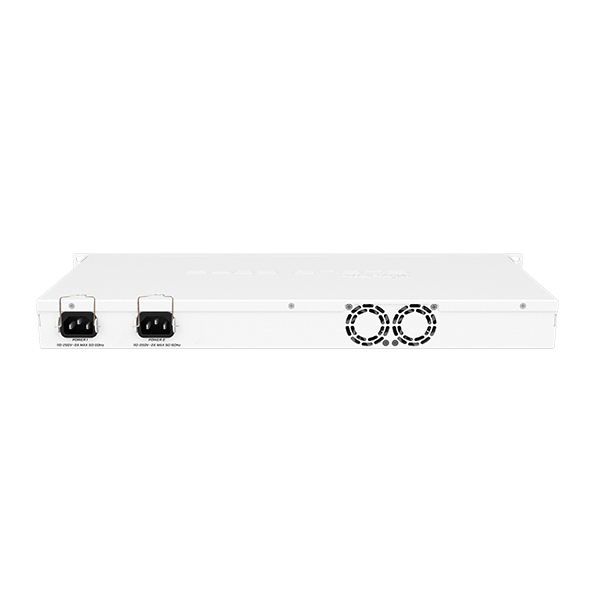

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

Specifications

Product code    CCR1016-12S-1S+

Architecture     TILE

CPU       TLR4-01680

CPU core count               16

CPU nominal frequency               1.2 GHz

License level     6

Operating System          RouterOS

Size of RAM       2 GB

Storage size      128 MB

Storage type     NAND

Tested ambient temperature   -20°C to 60°C

Powering

Number of AC inputs    2

AC input range 100-240

Max power consumption           47.5 W

Max power consumption without attachments                34 W

Ethernet

10/100/1000 Ethernet ports       12

Peripherals

Memory card type         microSD

Memory Cards 1

Serial port          RJ45

Number of USB ports    1

USB Power Reset            Yes

USB slot type    USB type A

Max USB current (A)     1

Others

CPU temperature monitor         Yes

PCB temperature monitor         Yes

Mode button    Yes

Certifications and Approvals

Certification     CE/RED, EAC, ROHS
