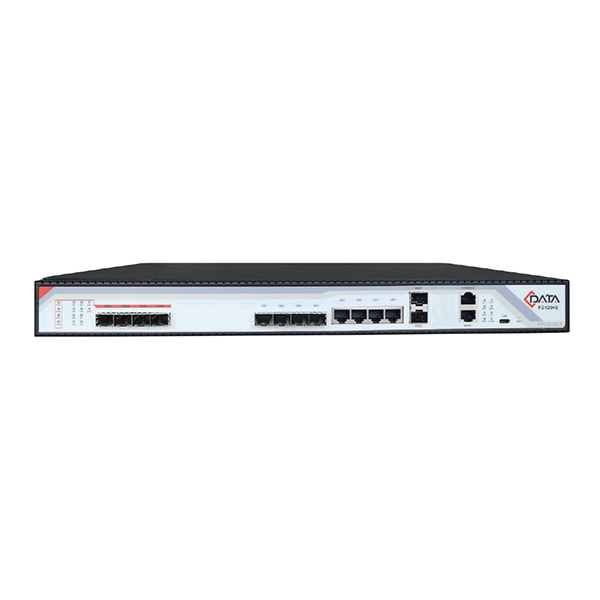

C-Data EPON OLT 4 PORT (with 10G uplink) FD1204S-B0-NDA0
- Meet IEEE3x standard and relative EPON standards of Chinese Communication Industry
- Support OAMremote management for ONT/ONU, compatible with IEEE 3x OAM Protocol
- 1Uheight 8PON OLT product in compact design of Pizza-Box
- Layer 2 Switching Function
- QOSGuarantee
- Easy-to-Use Management System
MRP. 75,000.00৳
Uplink Port | |
---|---|
QTY | 10 |
Copper | 10/100/1000M auto-negotiable,RJ45:4pcs |
Optical interface | 4 GE |
10Gb uplink interface | 2*10Gb |
PON Port | |
---|---|
QTY | 4 |
Physical Interface | SFP Slots |
Connector Type | 1000BASE-PX20+ |
Max splitting ratio | 1:64 |
USB Port | |
---|---|
QTY | 1 |
Connector Type | Type-C |
PON Port Specification | |
---|---|
Transmission Distance | 20KM |
PON port speed | Symmetrical 1.25Gbps |
Wavelength | 1490nm TX,1310nm RX |
Connector | SC/PC |
Fiber Type | 9/125μm SMF |
TX Power | +2.5~+7dBm |
Rx Sensitivity | -27dBm |
Saturation Optical Power | -6dBm |
10Gb SFP+ Port Specification | |
---|---|
Transmission Distance | 10KM |
PON port speed | 8.5-10.51875Gbps |
Wavelength | 1310nmTX,1310nmRX |
Connector | LC |
Fiber Type | Single mode with dual fiber |
TX Power | -8.2~+0.5 dBm |
Rx Sensitivity | -12.6dBm |
Power Supply | |
---|---|
220VAC | AC: 100V~240V,50/60Hz |
-48DC | DC:-40V~-72V |
Operating Environment | |
---|---|
Working Temperature | -15~50℃ |
Storage Temperature | -40~85℃ |
Relative Humidity | 5~90%(non-condensing) |
Others | |
---|---|
Power Consumption | 60W |
Weight | 4kg |
Size | 440mm(L)*230mm(W)*44mm(H) |
Management Ports | 1 100/1000 BASE-Tx out-band Ethernet port 1 CONSOLE local management port |
Management Mode | SNMP, Telnet, CLI management mode. |
Management Function | Fan Group Detecting Port Status monitoring and configuration management; Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc; EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc; Online ONU configuration and management User management Alarm management |
Layer-two Switch | Support port VLan and protocol Vlan Support Vlan tag/Untag ,vlan transparent transmission; Support 4096 VLAN Support 802.3dd trunk RSTP QOS based on port ,VID,TOS and MAC address IGMP Snooping 802.x flow control Port stability statistic and monitoring |
EPON Function | Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah Standard Up to 20KM transmission Distance Support data encryption, group broadcasting, port Vlan separation, RSTP, etc. Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-discovery/Link detection/remote upgrade of software; Support VLAN division and user separation to avoid broadcast storm; Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels. Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy |
EPON OLT FD1204S-B0 completely meet relative standards of IEEE 802.3x and FSAN. The equipment is a 1U rack-mounted device, providing 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 2 10-gigabit uplink ports and 4 EPON ports. Single port supports 1:64 splitting ratio. System support 256 EPON terminals accessing in for the most.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
