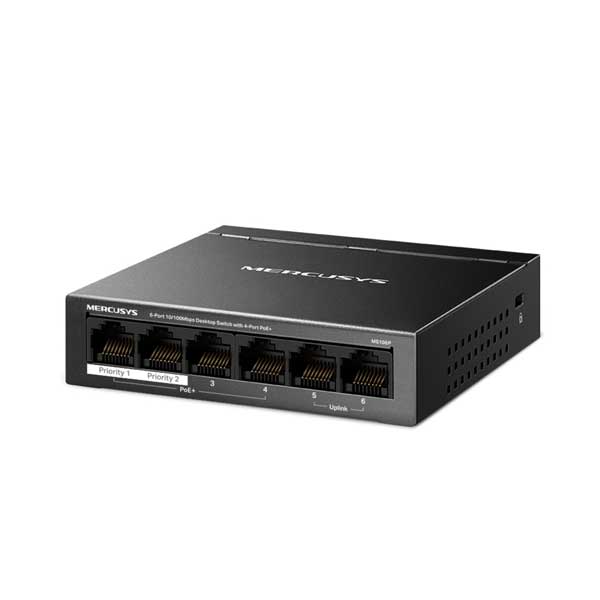

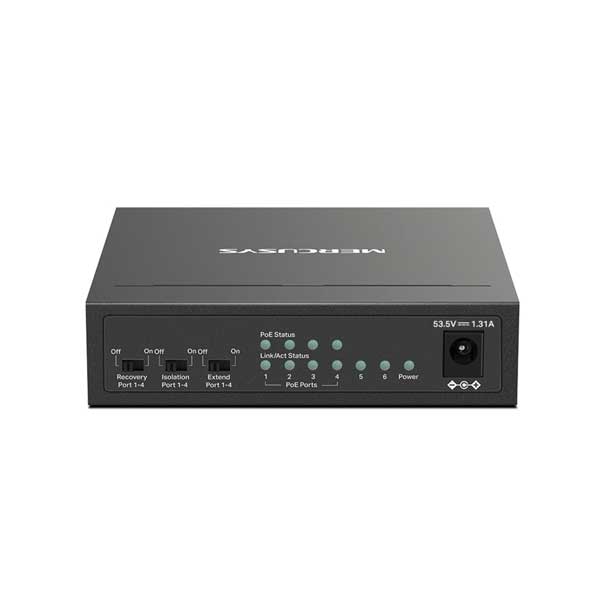

MERCUSYS MS106P 6-PORT 10-100MBPS DESKTOP SWITCH WITH 4-PORT POE Plus 67W TOTAL POE BUDGET

  • 6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
  • Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Supports PoE Power up to 30 W for each PoE port and 67 W for all PoE ports*
  • 2× Uplink Ports: MS106P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Plug and Play: Simple to use, saving time and effort
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life

MRP. 990.00৳

SKU: MS106P Categories: , , ,
MERCUSYS
General
Standards and Protocols IEEE 802.3x Flow Control
Data Rates 10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame 2 KB
MAC Address Table 2K
Hardware
Dimensions 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
Interfaces 6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
PoE Ports RJ45
Standard: Compliant with IEEE 802.3af/at Powered Devices
Ports: 1–4
PoE Power Budget: 67 W
External Power Supply External Power Adapter (Output: 53.5V / 0.81A)
Installation Desktop / Wall Mount
Power
Max Power Consumption 1.87 W (220 V / 50 Hz, no PD connected)
44.8 W (220 V / 50 Hz, with 40 W PD connected)
Max Heat Dissipation 6.34 BTU/h (no PD connected)
152.32 BTU/h (with 40 W PD connected)
Package Contents
Package 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106P)
Power Adapter
Quick Installation Guide
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 5% ~ 95% RH non-condensing

The Mercusys MS106P is a versatile 6-port 10/100Mbps desktop switch featuring 4 PoE+ ports designed for efficient network deployment. With a total power budget of 67W, it provides up to 30W per port, making it ideal for powering IP cameras, access points, and IP phones via a single Ethernet cable. The switch includes specialized features like Extend Mode, which increases PoE transmission distance up to 250 meters, and PoE Auto Recovery, which automatically reboots unresponsive devices. Built with a durable metal casing for silent operation and effective heat dissipation, it also offers Isolation Mode to separate traffic and enhance network security.

What is the price of MERCUSYS MS106P 6-PORT 10-100MBPS DESKTOP SWITCH WITH 4-PORT POE Plus 67W TOTAL POE BUDGET in Bangladesh?
The latest price of MERCUSYS MS106P 6-PORT 10-100MBPS DESKTOP SWITCH WITH 4-PORT POE Plus 67W TOTAL POE BUDGET in Bangladesh is

MRP. 990.00৳

.
