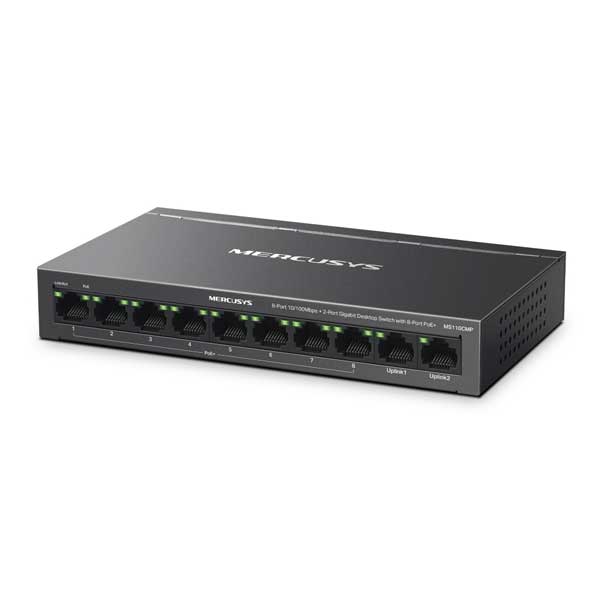

MERCUSYS MS110CMP 8-PORT 10-100 MBPS Plus 2-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 115W TOTAL POE BUDGET

  • 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
  • Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
  • 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Plug and Play: Simple to use and saves time and effort
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life

TBA

SKU: MS110CMP Categories: , , ,
MERCUSYS
General
Standards and Protocols IEEE 802.3x Flow Control
Data Rates 10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame 2 KB
Switching Capacity 5.6 Gbps
MAC Address Table 2K
Hardware
Dimensions 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Interfaces 8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX
PoE Ports RJ45
Standard: Compliant with IEEE 802.3af/at Powered Devices
Ports: 1–8
PoE Power Budget: 115 W

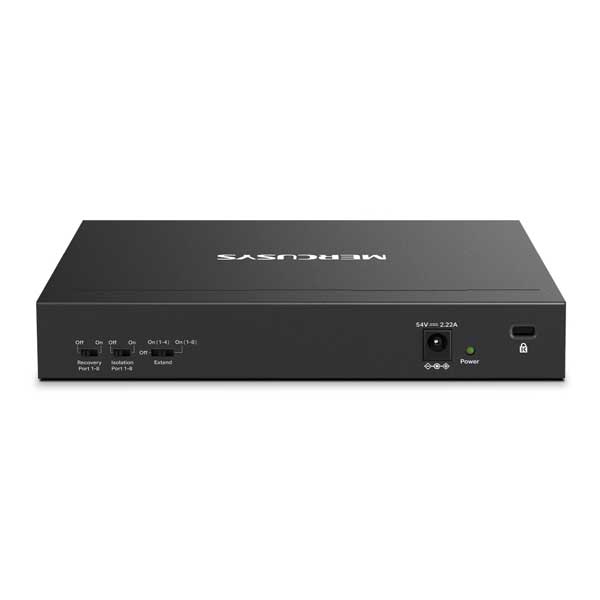

External Power Supply External Power Adapter (Output: 54V / 2.2A)
Installation Desktop / Wall Mount
Power
Max Power Consumption 3.79 W (220 V / 50 Hz, no PD connected)
130.49 W (220 V / 50 Hz, with 115 W PD connected)
Max Heat Dissipation 12.92 BTU/h (no PD connected)
444.97 BTU/h (with 115 W PD connected)
Package Contents
Package 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
Power Adapter
Quick Installation Guide
Environment
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 5% ~ 95% RH non-condensing

The Mercusys MS110CMP is a high-performance 10-port desktop switch featuring 8 PoE+ ports (10/100 Mbps) and 2 dedicated Gigabit uplink ports. Designed for efficient power management, it offers a substantial 115W total PoE power budget, supporting up to 30W per port for devices like IP cameras, access points, and IP phones. Key highlights include Extend Mode, which allows PoE transmission up to 250 meters, and PoE Auto Recovery, which automatically reboots unresponsive connected devices. With a durable metal casing, silent fanless design, and Isolation Mode for enhanced security, it provides a reliable plug-and-play solution for small business surveillance and networking.

What is the price of MERCUSYS MS110CMP 8-PORT 10-100 MBPS Plus 2-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 115W TOTAL POE BUDGET in Bangladesh?
The latest price of MERCUSYS MS110CMP 8-PORT 10-100 MBPS Plus 2-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 115W TOTAL POE BUDGET in Bangladesh is

TBA

.
