MERCUSYS-MS110GMP-10-PORT-GIGABIT-DESKTOP-SWITCH-WITH-8-PORT-POE-Plus-111W-TOTAL-POE-BUDGET

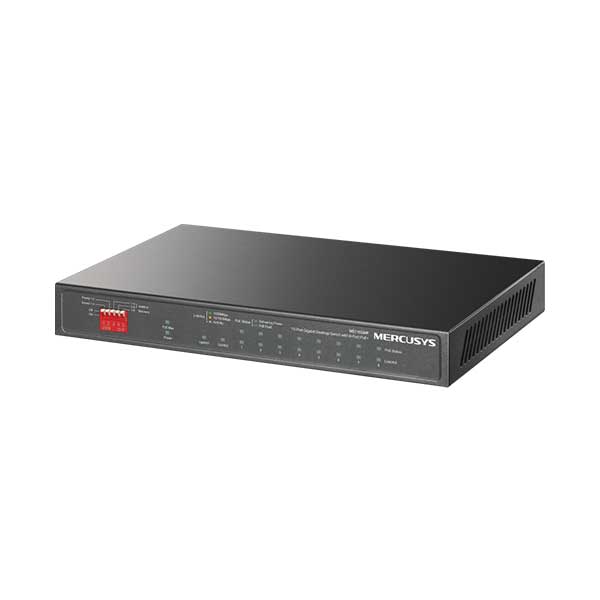

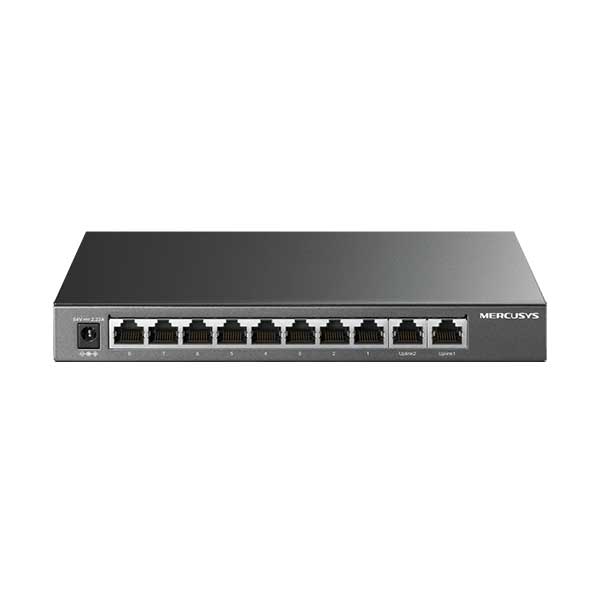

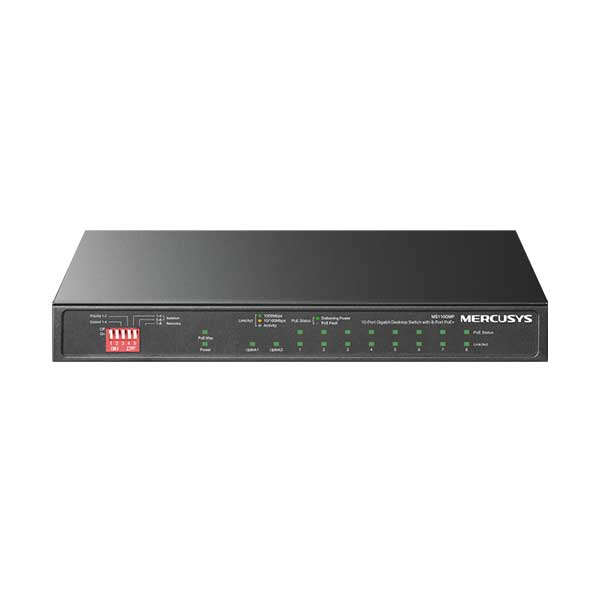

MERCUSYS MS110GMP 10-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 111W TOTAL POE BUDGET

  • 10 Gigabit Ports: 8× Gigabit PoE+ ports , and 2× Gigabit Uplink Ports
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 111 W for all PoE ports.* Works with IEEE 802.3af/at compliant PDs.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Priority Mode: Ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
  • Plug and Play: Simple to use and saves time and effort

TBA

SKU: MS110GMP Categories: , ,
MERCUSYS
General
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Transfer Method Store-and-Forward
Packet Forwarding Rate 14.88 Mpps
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
MAC Address Table 4K
Hardware
Dimensions 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Interfaces 8× 10/100/1000 Mbps PoE+ Ports
2× 1000 Mbps RJ45 Ports
Auto Negotiation, Auto MDI/MDIX
PoE Ports RJ45 Ports
Standard: IEEE 802.3af/at compliant
Ports: 1–8
PoE Power Budget: 111 W
Network Media 10BASE-T: UTP Cat 3, 4, 5 (max 100m), EIA/TIA-568 100Ω STP (max 100m)
100BASE-TX: UTP Cat 5, 5e (max 100m), EIA/TIA-568 100Ω STP (max 100m)
1000BASE-T: UTP Cat 5, 5e, 6 or above (max 100m), EIA/TIA-568 100Ω STP (max 100m)
External Power Supply External Power Adapter (Output: 54VDC / 2.22A)
Fan Quantity Fanless
Physical Security Lock Yes
Power
Max Power Consumption 7.37 W (220V / 50Hz, no PD connected)
129.4 W (220V / 50Hz, with 111 W PD connected)
Max Heat Dissipation 441.39 BTU/h (110V / 60Hz, with 111 W PD connected)
439.96 BTU/h (220V / 50Hz, with 111 W PD connected)
Advanced Features
Features Compatible with IEEE 802.3af/at compliant PDs
Extend Mode (Ports 1–4, up to 250 m PoE transmission)
Priority Mode (Ports 1–2)
Isolation Mode (Ports 1–4 / 5–8)
PoE Auto Recovery (Ports 1–8)
MAC address auto-learning and auto-aging
IEEE 802.3x flow control (full-duplex) and backpressure (half-duplex)
Package Contents
Package MS110GMP
Power Adapter
Installation Guide
Environment
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity 10% ~ 90% RH non-condensing
Storage Humidity 5% ~ 90% RH non-condensing

The Mercusys MS110GMP is a high-performance 10-port Gigabit desktop switch featuring 8 PoE+ ports and 2 dedicated Gigabit uplink ports. With a robust 111W power budget, it delivers up to 30W per PoE port, making it ideal for high-bandwidth devices like IP cameras, access points, and IP phones. This switch includes specialized features such as Extend Mode for up to 250m transmission, PoE Auto Recovery for reliable device maintenance, and Priority Mode for sensitive applications. Its fanless design ensures silent operation within a durable metal casing, providing a seamless plug-and-play solution for small businesses and home offices.

What is the price of MERCUSYS MS110GMP 10-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 111W TOTAL POE BUDGET in Bangladesh?
The latest price of MERCUSYS MS110GMP 10-PORT GIGABIT DESKTOP SWITCH WITH 8-PORT POE Plus 111W TOTAL POE BUDGET in Bangladesh is

TBA

.
